ark Tamo™ Illumination module

Illumination Module

Both ark Tamo and ark Tamo Pro are equipped with integrated illumination modules powered by a cell battery. The battery is designed to last up to 5 years with normal use (up to 4 times per day). However, with more frequent use, the battery life may be slightly shorter. While the mechanical parts of the key safes are covered by a 5-year warranty (upon registration), the illumination modules are covered for 2 years.

However, rest assured that the key safe will remain secure and will continue to operate functionally. The illumination module only powers the lights, the operation of the key safe itself is mechanical and will operate even when the lights no longer have power.

Should you experience any issues with the illumination module, please contact our customer service team on 0330 363 0303 or email us at hello@keysafe.co.uk

Illumination Module Technical Data & Features:

Light activation duration: 20 seconds

Battery type: CR2477 button cell (integrated and non-replaceable)

LED light integrated with the module

No charging required

Instructions of replacing the illumination module

1. Open the weather cover and safe.

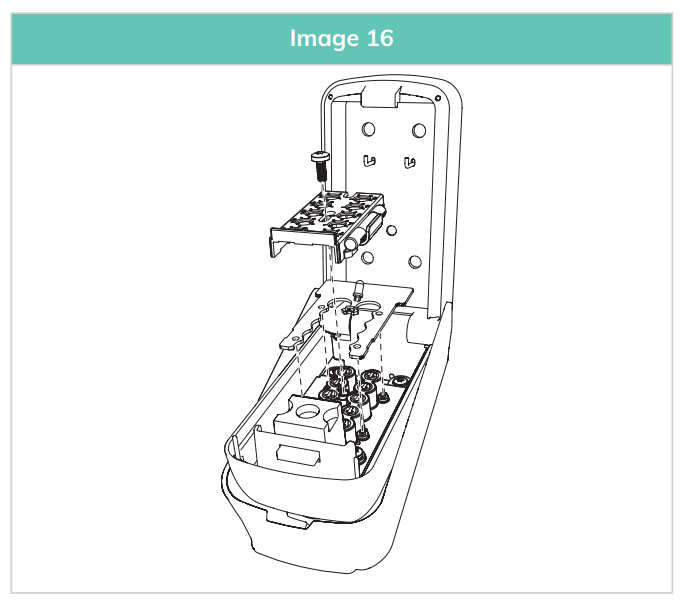

2. Remove the screw securing the illumination module (see Image 16).

3. Remove the code cover.

4. Remove the old illumination module.

5. Place the new illumination module over the four retaining lugs.

6. Replace the code cover.

7. Replace the screw of the illumination module.

8. Close the lid and weather cover

Cost of a replacement illumination module

If your illumination module is outside of its 2 year warranty, please contact us to purchase a replacement illumination module and instructions on how to change the module in our ark Tamo. We are awaiting final costs but expect the illumination module to be in the region of £20.
